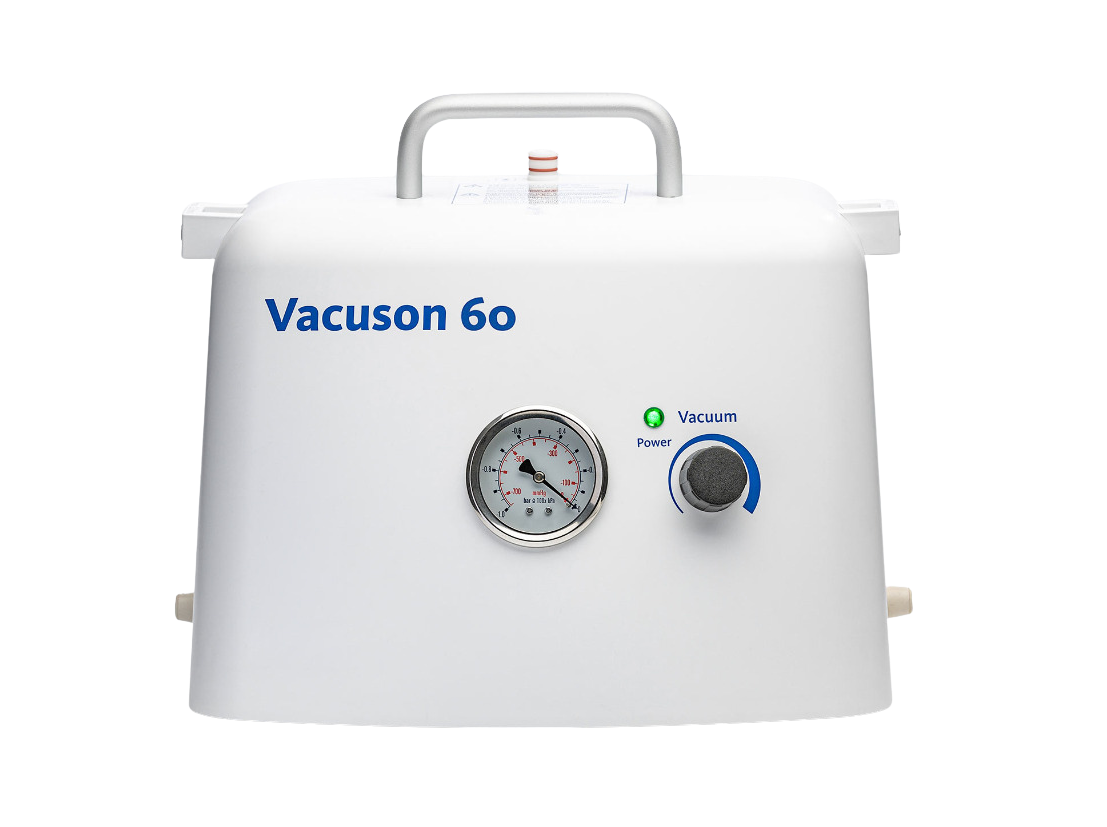

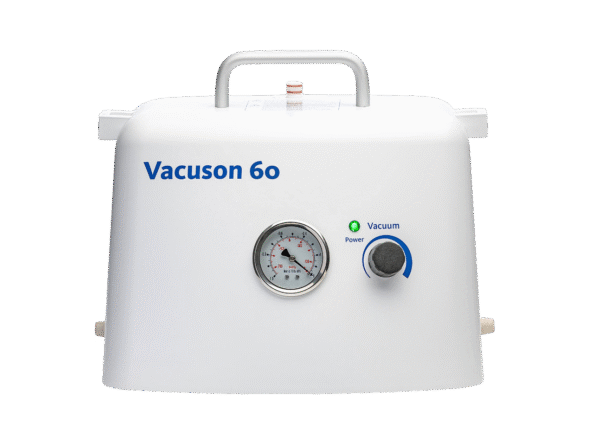

Vacuson 60 Suction Pump By Nouvag AG

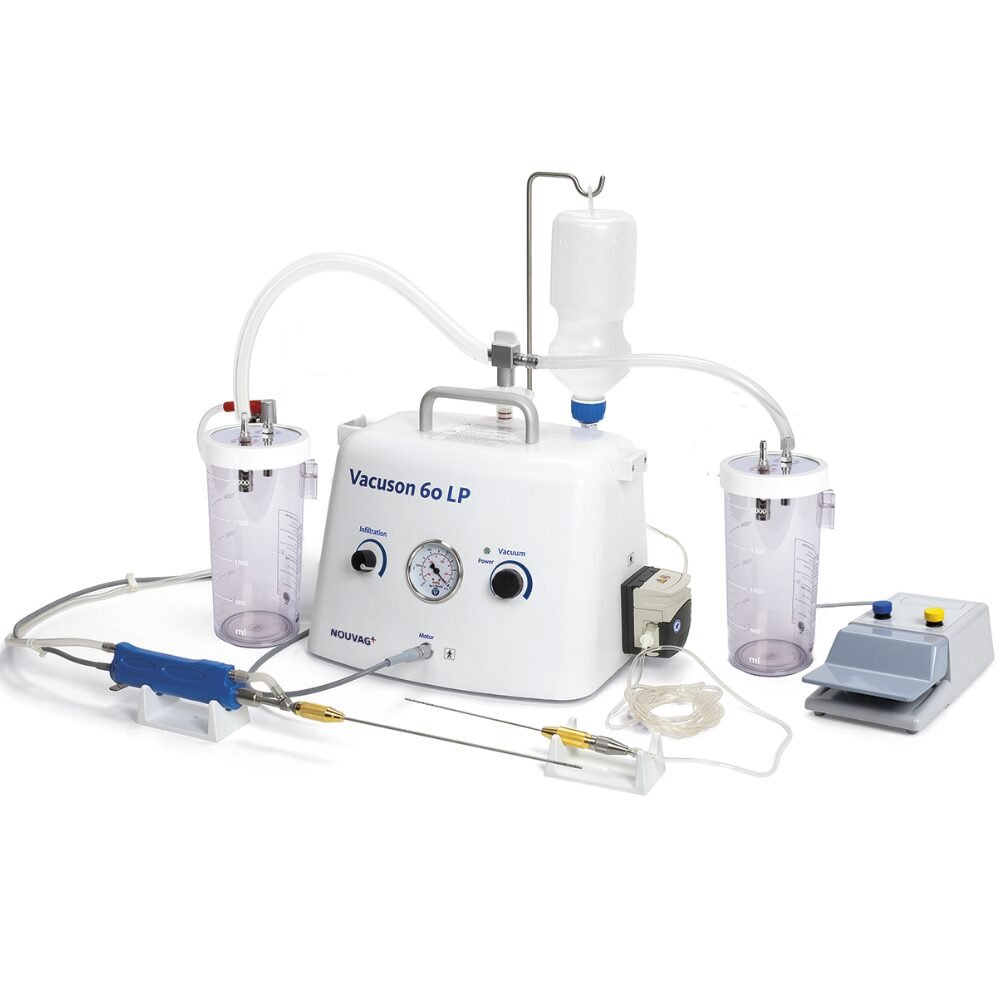

The Vacuson 60LP system contains a powerful 60-liter pump for aspiration and a peristaltic infiltration pump. The pump output can be regulated via a pedal and a rotary knob and the aspiration can be continuously monitored via a manometer.

Vacuum adjustable with rotary knob
Manometer for indicating vacuum value
On / Off – Switch
Air flow rate 60 l / min
Lightweight and ergonomic handle for Power Cannula and Power Infiltration
Infiltration flow rate up to 350 ml/ min
Compact design
Economic due to excellent price / performance ratio
Continuously adjustable and precise adjustable suction performance
All-purpose and flexible
Solid, reliable – approved technology
Easy operation and low maintenance
Low noise and vibration level
Automatic overflow safety
Portable and moveable

Call US For Price

Free Demo

SKU: NVG-201 Categories: Nouvag AG Equipment Pumps & Machines

Description

Product Description

Technical Data

Voltage: For 115 V model, REF 4285-115: 115 V~at 60 For 230 V model, REF 4285-230: 230 V~at 50 Hz
Power consumption: max. 370 VA
Fuses : For 115 V model, REF 4285-115: 2 x T4 AL 250 V AC
For 230 V model, REF 4285-230: 2 x T2 AL 250 V A
Protection class: Class I
Applied part: Type BF
Max Pressure: Relative: – 0,9 bar/675 mmHG; Absolute: 0,1 bar/675 mmHG
Dimensions, W x H x D: 3360 x 300 x 280 mm
Weight: 14kg
Accuracy limit, Manometer: ± 5 %
Speed of Conform Cannula Handpiece: 10,000 rpm = 3600 strokes/min.
Suction Pump Capacity: 60 l/min.

Ambient conditions

Transport and storage: Operation:
Relative humidity: 10 % – 90 % Max. 80 %
Temperature: 0 – 60°C, (32 – 140°F) 10 – 30°C, (50 – 86°F)
Atmospheric pressure: 700 – 1060 hPa 800 – 1060 hPa
